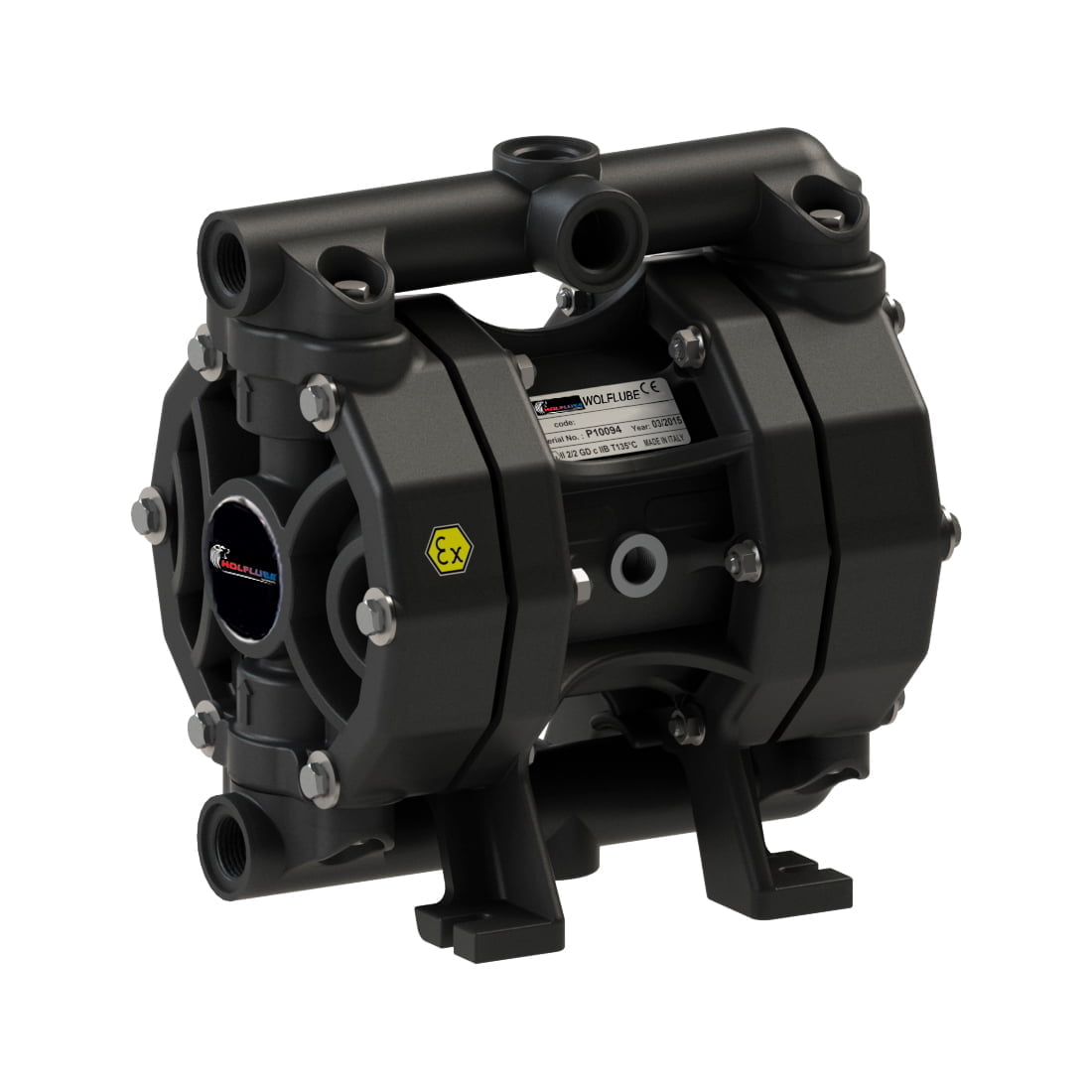

Diaphragm Pump – Polypropylene – 1/2” – For Water and DEF – Free Flow Rate 14.5 gpm
$843.99
Free Shipping on Orders Over $99
100% Secure payments
Free returns within 30 days
Description
These pumps are recommended for the use of transferring DEF and similar for short through medium distances. The delivery capacity of a pump varies according to applications and combinations. The operating pressure may vary between a minimum of 29 PSI and a maximum of 116 PSI. The double-acting air operated pump ensures the delivery of a continuous and constant flow, suitable for installations on distribution facilities.
We recommend using filtered air to optimize the efficiency and the life of our air operated pumps.
Typical Applications
- Automotive Dealerships
- Lube Trucks
- Industrial Applications
- Fast Lube Centers
- Service Shops
- Farm/ Agriculture
- Fleet Service Facilities
- Heavy- duty Dealerships
- Mining
- DEF transfer
Additional Specifications
Additional information
| SKU | WLB-540120 |
|---|---|
| Pump Ratio | 1:1 |
| Fluid Inlet | 1/2” NPT(f) |
| Fluid Outlet | 1/2” NPT(f) |
| Air Inlet | 1/4” NPT(f) |
| Free Flow Rate (116 PSI) | 14.5 GPM |
| Air Working Pressure (Range) | 29 PSI to 116 PSI |
| Air Consumption (116 PSI) | 14 CFM |
| Noise (dB) | 68 dB |
| Max. Viscosity | 20.000 CPS |
| Max. Solid Passing | 1/8” |
| Max. Working Temp. | 149º F |
| Max, Delivery. Height | 262.5 ft |
| Max. Suction Lift - Dry | 19.7 ft |
| Max. Suction Lift - Wet | 32.15 ft |
| Ball Material | SS AISI 316 |
| Diaphragm Material | Hytrel + PTFE |
| Fluids | Antifreeze, DEF, Water |
