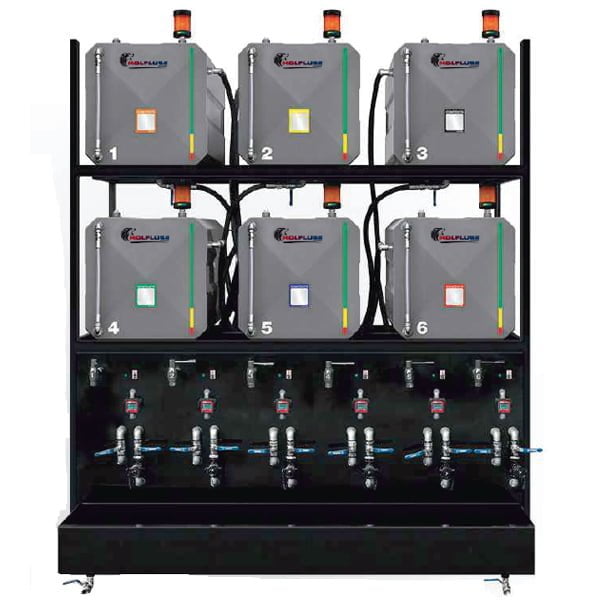

Oil Rack Storage System – Professional – 6 Tanks – in Metal – with Recirculation System
$64,876.99
Free Shipping on Orders Over $99
100% Secure payments
Free returns within 30 days
Description
Professional bulk and transfer Oil system, operating on a “recirculate (kidney loop)” basis through an absolute filter ß1000/5µ with saturation level indicator. Installed between the tank and the filter, the professional model includes a digital flow meter to control the cycles of oil filtering (66 GAL each Cycle). This model also includes a faucet to take samples for analysis. Each tank has its own completely independent and dedicated system, composed by faucet, samples system, pump, meter, hose, and filter to prevent cross-contamination. The system functions with gear pumps at 3.5 GPM flow rate, max 170 PSI, 120V, 3-minute bypass valve, with ON/OFF button including LED indicator and IP55 protection. To be used with lubricants with a viscosity up to 2000 cSt (104° Fahrenheit). The system reservoirs vent through hygroscopic air filters with silica gel, with a particulate filter of 2 p and activated carbon filter for retention up to 123 odors. Containment basin with capacity for all system reservoirs.
Typical Applications
- Industrial applications
- Lube Rooms
Additional information
| SKU | WLB-258016 |
|---|---|
| System Type | Professional |
| Tank Qty. | 6 |
| Tank Capacity | 66 GAL |
| Tank Material | ALUMINUM |
| Tank Dimensions | 22” x 21.7” x 35.4” |
| Pump | 6 Pumps – 120V/60Hz |
| Flow rate | 3.7 GPM |
| Pump Power Watt | 1200 |
| Max. Viscosity | 2000 cSt |
| Bypass Valve | Yes |
| Filter | 6 Filters ß1000/5µ |
| Meter | 3 (260061) |
| Dimension | 103” x 87” x 54” |
| Desiccant Breather | 6 Breathers |
| Fluids | Oil |
