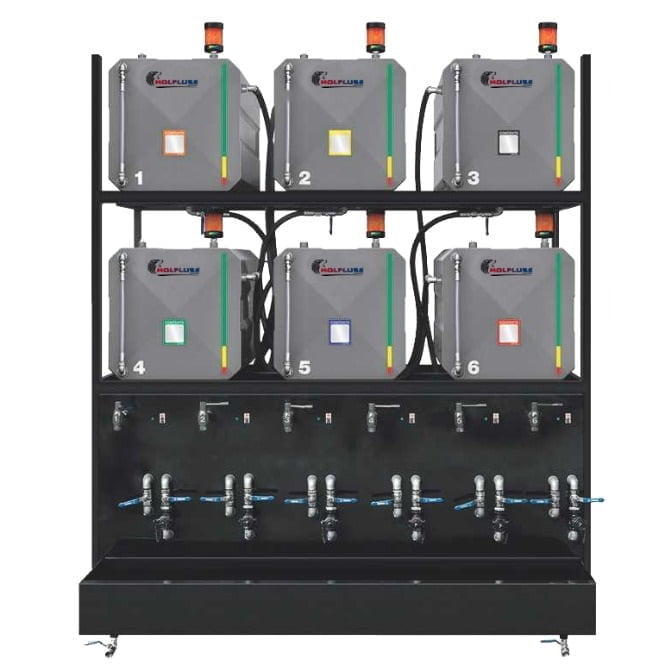

Oil Rack Storage System – Standard – 6 Tanks – in Metal
$49,976.99
Free Shipping on Orders Over $99
100% Secure payments
Free returns within 30 days
Description
Each tank has its own completely independent and dedicated system, composed by faucet, samples system, pump, meter, hose, and filter to prevent cross contamination. The system functions with gear pumps at 3.5 GPM flow rate, max 170 PSI, 120V, 3-minute bypass valve, with ON/OFF button including LED indicator and IP55 protection. To be used with lubricants with a viscosity up to 2000 cSt (104° Fahrenheit). The system reservoirs vent through hygroscopic air filters with silica gel, with particulate filter of 2 p and activated carbon filter for retention up to 123 odors. Containment basin with capacity for all system reservoirs.
Typical Applications
- Industrial applications
- Lube Rooms
Additional information
| SKU | WLB-258006 |
|---|---|
| System Type | Standard |
| Tank Qty. | 6 |
| Tank Capacity | 66 GAL |
| Tank Material | ALUMINUM |
| Tank Dimensions | 22” x 21.7” x 35.4” |
| Pump | 6 Pumps – 120V/60Hz |
| Flow rate | 3.7 GPM |
| Pump Power Watt | 1200 |
| Max. Viscosity | 2000 cSt |
| Bypass Valve | Yes |
| Filter | 6 Filters 30µ |
| Meter | No |
| Dimension | 103” x 87” x 54” |
| Desiccant Breather | 6 Breathers |
| Fluids | Oil |
